SD Locks - Reference

Reference Guide for Lock Replacement

and Lock Exploded View Drawing

Old Model	For 10mm Door	For 12mm Door	Existing Model
Kumahira Security Corp. Matrix for Safe Deposit Locks Replacement
KD-73-01	*		KD-76-05
KDC-73-00	*
KDC-76-04	*
KDC-76-00	*
KD-73-11		*
KD-76-12		*
KD-73-21	*		KD-76-20
KDC-73-20	*		KD-76-20

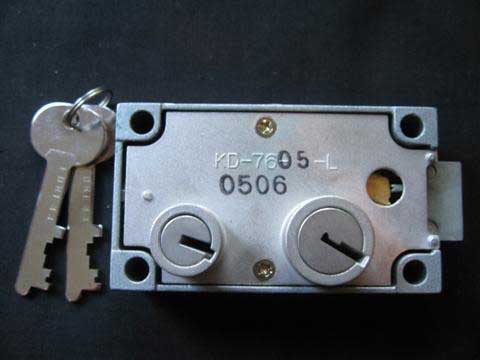

Existing KD-76-05 & KD-76-20 locks are for 10mm door. When replacing KD-73-11 or KD-76-12 lock with KD-76-05 lock, front noses sink 2.5mm from the door surface.

Old Model	Existing Model
Bullseye Matrix for Safe Deposit Locks Replacement
Bullseye B440 DLN	Sargent & Greenleaf 4440
Bullseye B431 DLN	Sargent & Greenleaf 4231
Bullseye B442 BLNL	Sargent & Greenleaf 4442

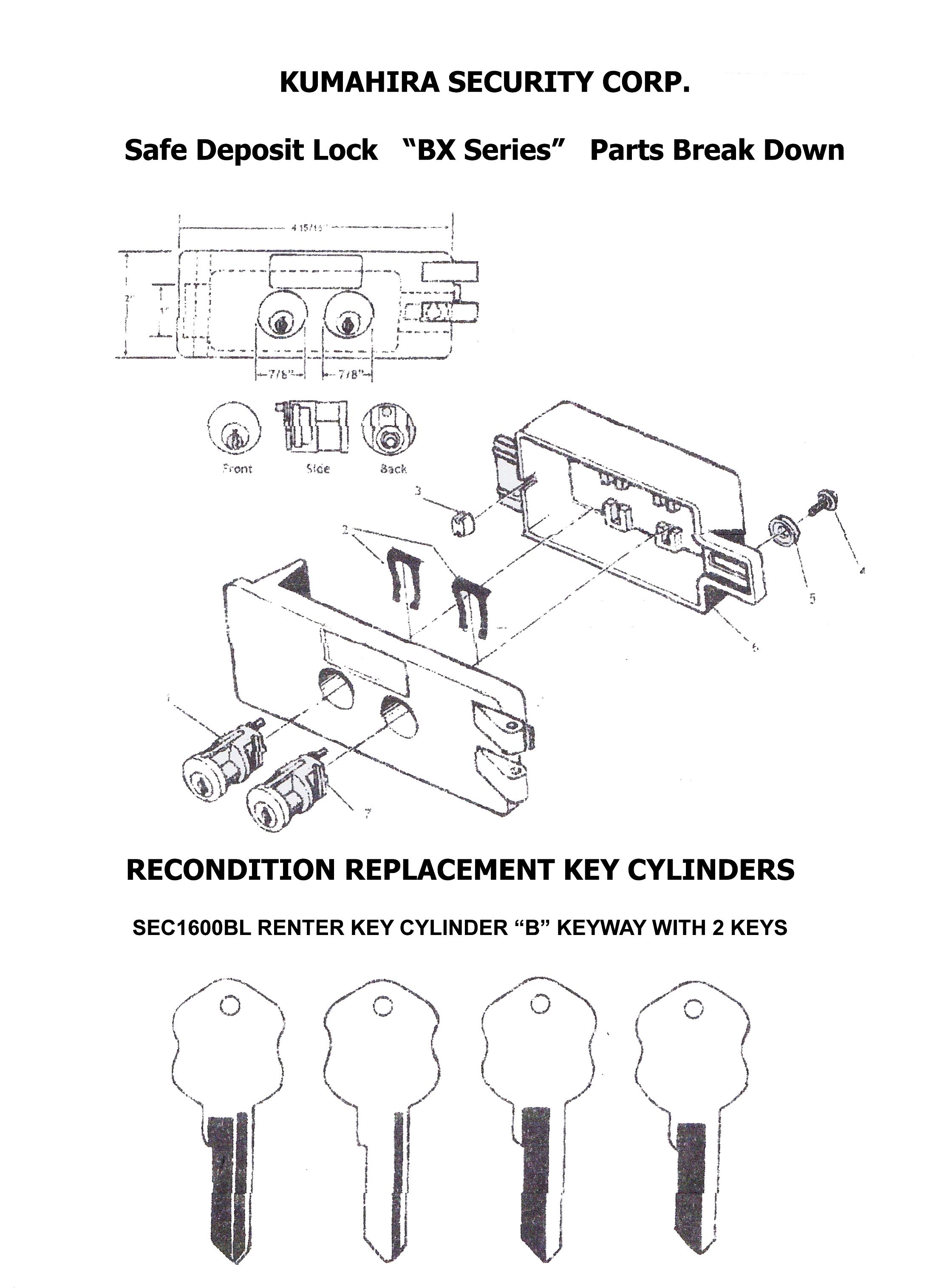

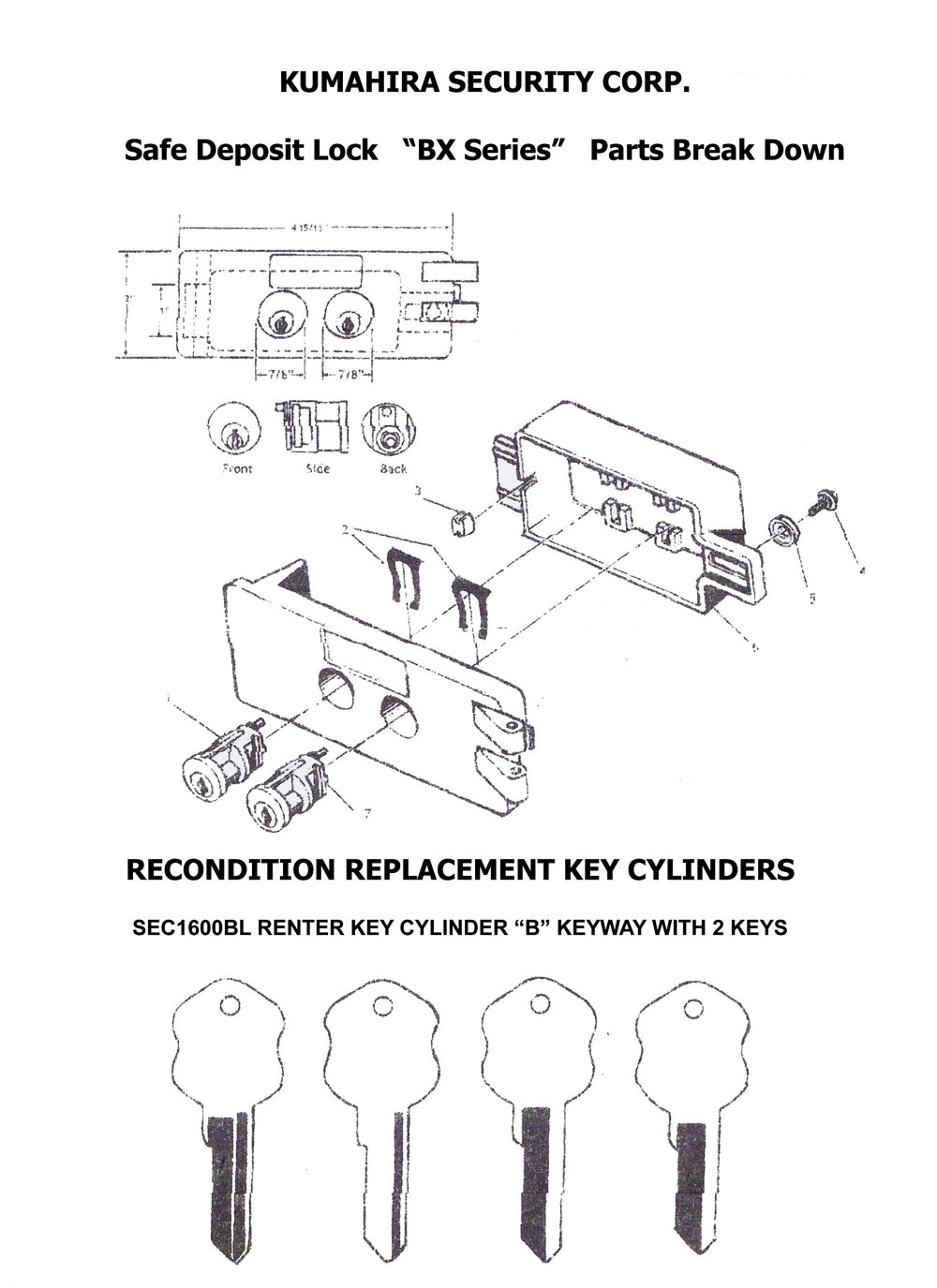

Kumahira Security Corp. BX Series Exploded View Drawing
(click photo to enlarge)

Disclaimer: Photos may not represent actual item

We do not claim that these photos of locks, keys and parts is complete or without error, nor do we represent these items as original factory parts. Most locks and parts are aftermarket reproduction, new OEM or used OEM from closed banks. Where the name Kumahira, Security, Diebold, Mosler, LeFebure, Yale, Herring Hall Marvin, Bates, York, Miles, ect. appears, we merely list those names to indicate the type of lock or part number used to represent that brand for cross reference purposes to match an original or aftermarket replacement products. We have hundreds of parts, too many to list on a website. If you do not see the item you are lookig for, please contact us. We are here to help.
